ACCURIS   ASPIRE™   LABORATORY   ASPIRATOR

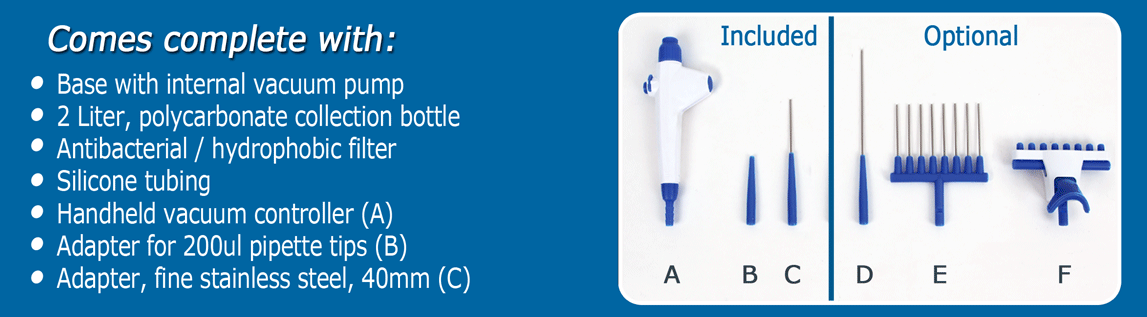

The Accuris Aspire™ Laboratory Aspirator incorporates a quiet, maintenance-free pump inside a sturdy, yet compact base. The vacuum is fully adjustable, with a pressure gauge that displays the vacuum level, allowing full control of aspirating speed. The ASPIRE is an ideal choice for a wide range of laboratory aspirating applications, including removal of media from tissue culture vessels or plates, and supernatants. An ergonomic, hand held aspirating device is included, and holds standard 200 to 300ul disposable pipette tips. Comes complete with:

  • 2 Liter, Polycarbonate Collection Bottle (autoclavable and break resistant)
  • Antibacterial / Hydrophobic Filter
  • Silicone Tubing
  • Handheld Vacuum Pipette
  • 2 Pipette cone adapters

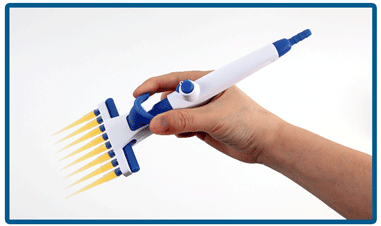

The collection bottle incorporates a reliable Overflow Protection Valve that closes off the tube to the vacuum in the event of a full bottle. In addition, the replaceable in-line filter protects the vacuum pump from contaminants and any moisture that comes through the bottle. Graduations on the collection bottle indicate the amount of fluid collected and when it’s ready to be emptied. The Handheld Vacuum Pipette has an ergonomic design that’s comfortable in the hand during prolonged use. Pressing the button applies the vacuum. The pipette accepts Pasteur pipettes, serological pipettes, and also comes with 2 accessory pipette cones. One cone is designed to accommodate 200/300ul pipette tips, the other has a thin, stainless steel capillary for fine control aspirating.

IV-900 Aspire™ Laboratory Aspirator, includes base with internal vacuum pump, 2L Polycarbonate bottle with lid, silicone tubing, handheld vacuum controller and single channel adapters, 115V (V0020)

IV-900 Aspire™ Laboratory Aspirator, includes base with internal vacuum pump, 2L Polycarbonate bottle with lid, silicone tubing, handheld vacuum controller and single channel adapters, 230V (V0020-E)

IV-510 Handheld vacuum controller with single channel adapters

IV-522 Optional single channel adapter, extra long (80mm) stainless steel

IV-520 Optional eight channel adapter, for use with 200ul pipette tips

IV-503 Optional eight channel adapter, fine tip stainless steel

IV-910 Option quick disconnect kit, includes 2 male/female attachments & silicone tubing

IV-930 Graduated, PC collection bottle (included)

IV-940 Extra tubing set, 1 meter

IV-523 Aerosol Blocking Filters (Hydrophobic, PTFE) - 5 Pack Protect pumps and vacuum lines from hazardous aerosols; 0.1μm retention rating.

Technical Data:
Max. Aspiration Rate: 14ml/sec
Max. Flow Rate: 15L/min.
Vacuum Range: -30mbar too -750mbar
Noise Level: 59.6 db
Vacuum Pump: Oil Free, piston pump
Dimensions: 9.5 x 7.9 x13.5 in.
Weight: 4.8 lbs (2.2kg)
Electrical: 115V, 60Hz or 230V 50HZ
Warranty: 2 years

COSTAR, INTEGRA AND VACUSET Aspirator REPLACEMENT/MAINTENANCE PARTS

IV-511 Valve Stem for Hand Piece
IV-511-G O-Ring for Valve Stem, Viton, 2,57 x 1.78mm, 2/pack
IV-512 Push Button for Hand Piece Valve Control.
IV-513 Bottom Screw (constant vacuum adjuster) for Hand Piece
IV-514 Valve Spring for Hand Piece
IV-515 Rear Hose Barb Connector for Hand Piece, 1/4" OD
IV-515-G O-Ring for Rear Connector, Viton, 6.75 x 1.78mm, 2/pack
IV-516 Front Collet for Hand Piece (for use with insertable tips)
IV-505 Silicone Adapter for insertable tips, and Pasteur and 2ml disposable pipettes.
IV-509 Molykote O-ring grease
